The trajectory starting height is defaulted to meters AGL (above ground level), however
as shown earlier, height definitions can be changed to meters AMSL (above mean sea level)
from the Model Runtime Options menu. Regardless of how the input heights are defined,
internally HYSPLIT treats all heights in a terrain following coordinate system based on the chosen
meteorological data. These heights may be quite different from the actual terrain height at a point
of interest.
As an example of how one might define a starting trajectory height, examine
the location for Broomfield (KBJC), Colorado, at 39.92N and 105.12W,

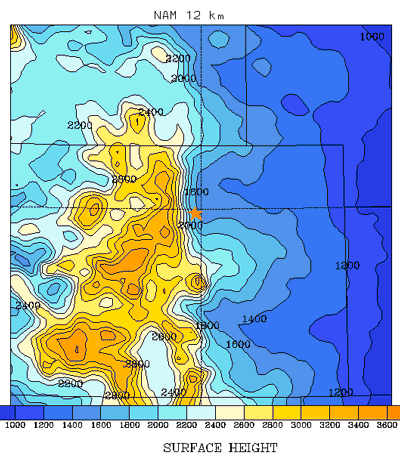

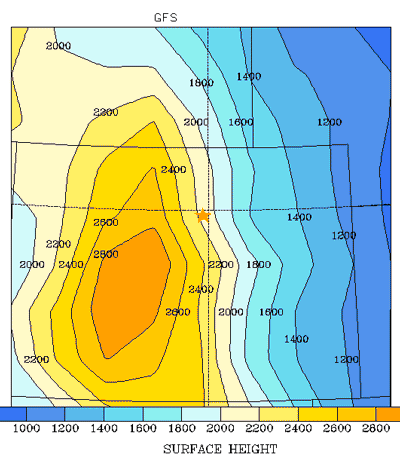

which has a surface height of 1724 m AMSL. The terrain
heights for the NAM 12 km (left) and GFS (right) are shown below (Bloomfield is indicated by the
orange star). The terrain in the vicinity of Bloomfield is much smoother in the coarser GFS than
the NAM and the terrain gradient is much steeper in the NAM, and therefore, we would expect to
see differences in the terrain heights between the 2 models. Also, when the all model terrain heights
(see table to the right) are consistently higher than the true terrain height, one might suspect that
the station is located in a valley, as in this case. In this situation all one can do is assume that
true ground-level is at the model's terrain height and proceed ... with the realization that the real
lower levels of the flow field may at times be constrained in ways that are not evident in the coarser
gridded meteorological data fields.
|
Model |
Resolution |
Terrain |
MM5 |
15 km |
2000 m |
MM5 |
45 km |
2100 m |
NAM |
12 km |
1970 m |
NAM |
40 km |
1840 m |
RUC |
20 km |
1890 m |
GFS |
1 deg |
2020 m |
Surface elevations for Broomfield, CO, from various meteorological models.
|
 |
 |
In the example below we compare the NAM 12 km trajectory (blue) to the MM5 45 km (green),
and the 1 degree GFS (red) originating from 10 m AGL. Even though all the trajectories
start out at the same height AGL, they start at different pressure levels
due to differences in elevation between the data.

|
